HIGH GAIN 2 WAY AMPLIFIER ***FPLUG***
Product Code
D00762
Barcode
5015972146866
- Carton quantity: 10
- Inner quantity: 1
HIGH GAIN 2 WAY AMPLIFIER ***FPLUG***

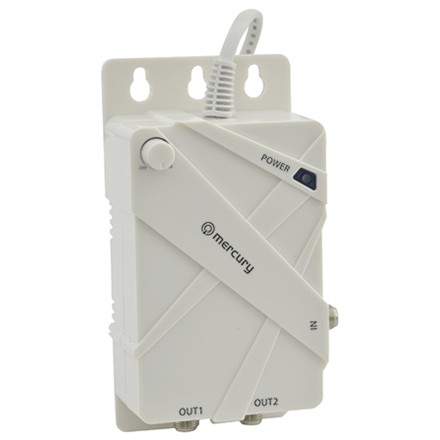

A 2-way DAB/TV signal amplifier designed to distribute existing quality radio and TV signals to two devices, compensating for loss of signal due to long cable runs. Fully shielded to minimise signal noise Adjustable gain Built-in short circuit protection, and maximum output limiter prevents overload LED power on indicator Power: 230Vac, 50Hz Frequency range: 47 - 862MHz Gain per split: 10 - 20dB Noise: <4dB Impedance: 75 Ohms Max. output level: 90dBuV Power cable: 1.1m Connection: F connector Connectors: F connector Dimensions:135 x 78 x 50mm
